chicken catcher machine 9 m
Quick Easy Safe Economical
Our chicken catching machine 6m can catch from 8,000 birds up to 12,000 birds per hour.
About Our chicken catcher machine 9 m
Main Parameters
| Item | Parameter |
|---|---|
|
Item
Overall Dimension :L×W×H（mm)
（Working Condition） |
Parameter
12200×2300×2100
|
|
Item
Overall Dimension :L×W×H（mm）
(Non-Working Condition） |
Parameter
12200×2300×1750
|
|
Item
Weight（Kg）
|
Parameter
4800+2120
|
|
Item
Harvester Head（M）
|
Parameter
9
|
|
Item
Radius of Turning Circle（M）
|
Parameter
12
|
|
Item
Max. Permissible Gradient（°）
|
Parameter
20
|
|
Item
Electric System
|
Parameter
PLC+TFT adopt Siemens & Schneider
|
About Engine
| Item | Parameter |
|---|---|
|
Item
Engine
|
Parameter
ChangchaiPower 4G33TC
|
|
Item
Rated Power（KW）
|
Parameter
50 HP
|
|
Item
Quantity of Cylinders
|
Parameter
4
|
|
Item
Intake Type
|
Parameter
Turbocharging
|
|
Item
Engine Torque（Nm/Rpm）
|
Parameter
310/1680
|
|
Item
Operating System Pressure（MPa）
|
Parameter
20
|
|
Item
Operating System Flow（L/Min）
|
Parameter
120
|
|
Item
Fuel Tank Capacity（L）
|
Parameter
61
|
|
Item
Hydraulic Tank Capacity（L）
|
Parameter
198
|
Automatic weighing
Travel speed （km/h）：
| Item | Parameter |
|---|---|
|
Item
Working Speed
|
Parameter
0-5
|
|
Item
Fast Speed
|
Parameter
0-8
|
|
Item
High Speed
|
Parameter
0-10
|
chicken catcher machine 9 m Quick View

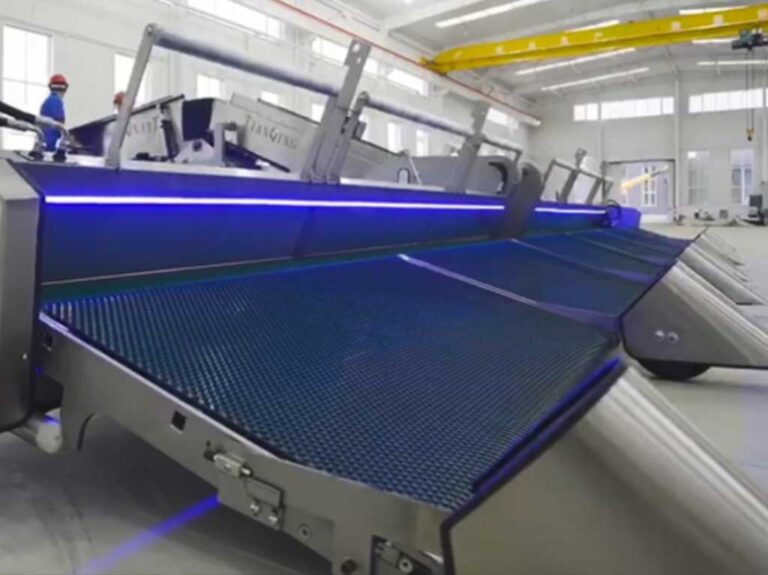

Folding harvest head
Easy for operation, transport and storage.
Harvest head can be manufactured from 3 meters to 9 meters.
Rubber Crawler Chassis
Minimize ground disturbance and minimize surface damage and leave minimal marks.
Ensure operator comfort and great noise reduction.
Full hydraulic drive
Full hydraulic drive control system, engine power source.
PLC imported from Germany Siemens or Schneider brand intelligent control system.
rubber belt conveying system
Low belt speed for smooth conveying.
Gentle transport is the guarantee for birds low injury rate.
Carousel
360 degree rotation can allow for a continuous loading process to the module.
Equipped with a weighing system to verify the weight of animals.
Remote Control
Remote control makes the operation become more easy, safer and more convenient.
Physical labour intensity are reduced greatly.
Chicken Catching Machines advantages
Our intelligent chicken harvesters have the following advantages. It is the best choice to replace the traditional manual chicken catching.
High Efficiency
Our chicken harvester has high efficiency. They can collect 8000 chickens/hour -12000 chickens/hour. The chicken weight can reach 16 tons per hour-26 tons per hour.
low injury rate
Rubber conveyor belts system guarantee chickens are well and comfortably transported with low injury rate.
Highly automated, easy to operate
Our chicken harvesters are equipped with Siemens PLC control system. It is easy to operate and has the functions of automatic walking, automatic reading, automatic weighing and automatic weighing.
Reduce labor and labor load
Instead of the manual catching. Our chicken harvester can catch broiler with much higher efficiency. The labor quantity reduced greatly.
Improve yield
Shorten the waiting time of chickens to be slaughtered, which is beneficial to reduce the number of dead chickens.
Biological safety
Avoid contact between the basket and chicken manure, which is good to biological safety.
